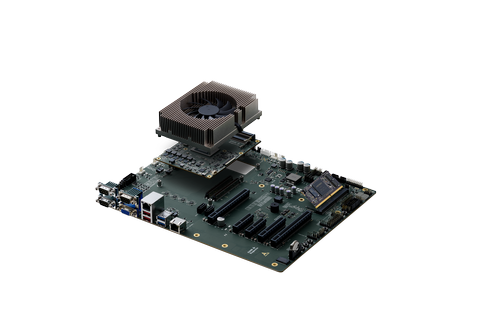

Powered by the AMD Embedded Ryzen™ V3000 (V3C18I) processor, this COM Express® Type 7 module delivers high-performance edge computing with exceptional power efficiency. The 8-core, 16-thread CPU operates at just 15W TDP (configurable down to 10W) and supports up to 64GB DDR5 memory (2×32GB) at 4800 MT/s, making it ideal for space- and power-constrained systems.
Designed for networking and infrastructure workloads, the module features PCIe® Gen4, dual 10GbE Ethernet, and one 2.5GbE Ethernet interface, ensuring low latency and high throughput for edge networking, 5G edge infrastructure, video analytics, intelligent surveillance, and industrial automation applications.
Built for reliability in demanding environments, the COM Express Type 7 Ryzen V3000 module supports extended operating temperatures from –40°C to +85°C and dual-channel ECC memory, enabling fanless, mission-critical designs in harsh industrial and outdoor deployments.

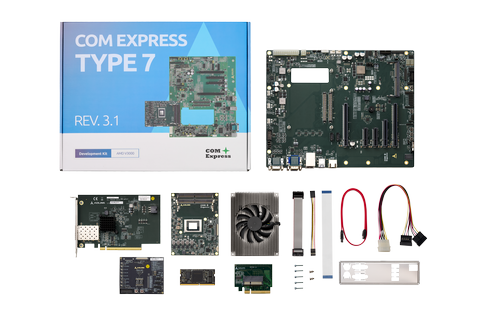

To accelerate time to market, an optional BMC module based on the ASPEED AST2600 is available. The integrated BMC provides robust remote management and monitoring capabilities, simplifying system development, deployment, and lifecycle management across a wide range of edge and industrial environments.
