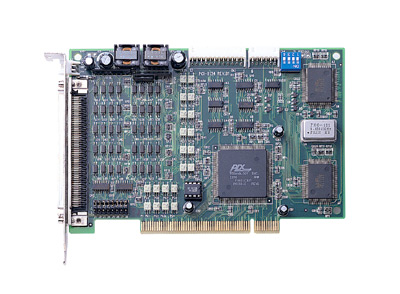

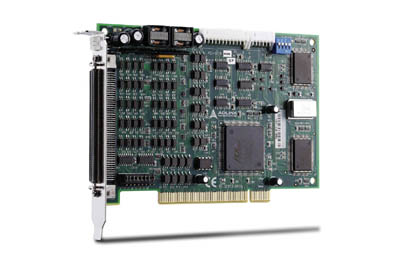

The PCI-8134 is a 4-axis motion controller based
on PCI bus. The PCI interface provides plug-andplay
feature that is the key to easy maintenance. The
maximum number of cards in one system is 12 cards
with capability of controlling 48 motors.
The PCI-8134 can generate high frequency pulse
train. The frequency of the pulse train controls the
motor speed; the number of pulse controls the motor
position. The differential input/output signals reduce
noise interference. The command output options,
including DIR/OUT mode and CW/CCW mode,
provide an easy access to various stepper or servo
motor drivers.
The motion control ASIC performs versatile
trajectory planning ability. The acceleration and
deceleration time are programmable. The S-curve
helps to avoid mechanism vibration. The hardware
linear interpolation between two axes is powerful to
reduce software computation effort.
