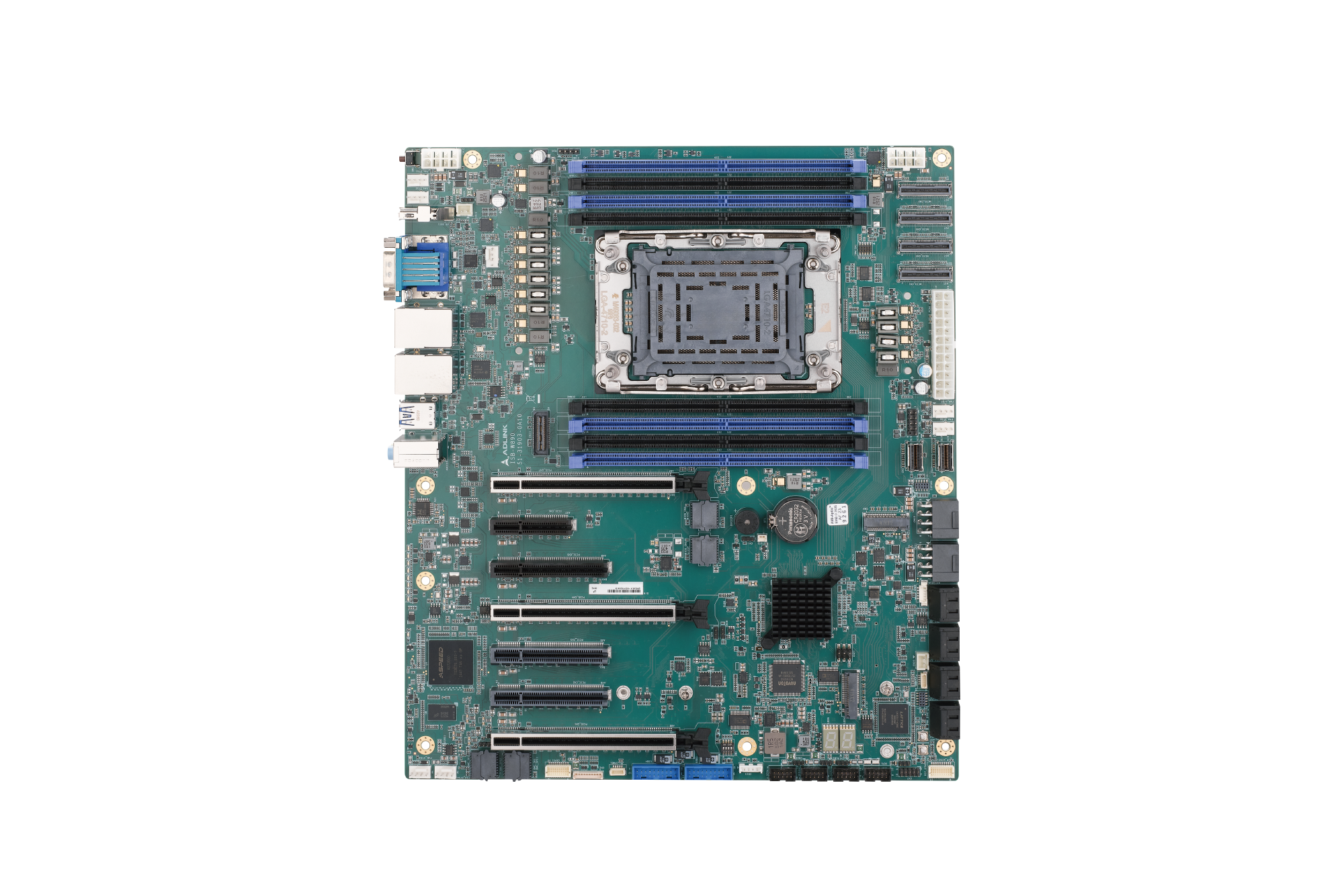

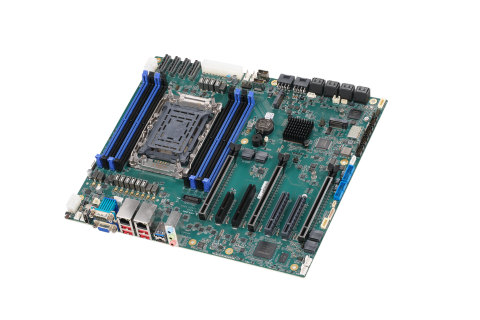

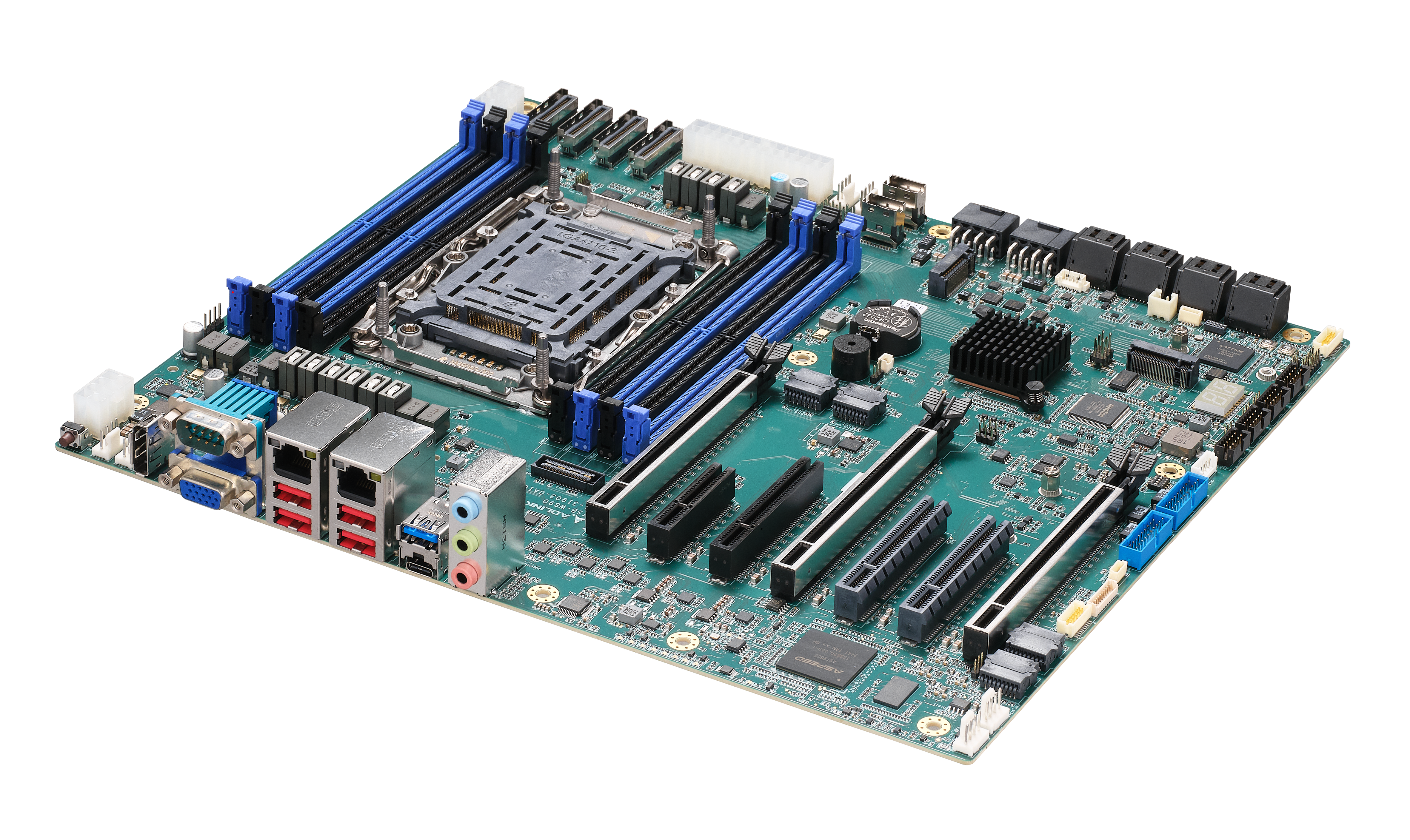

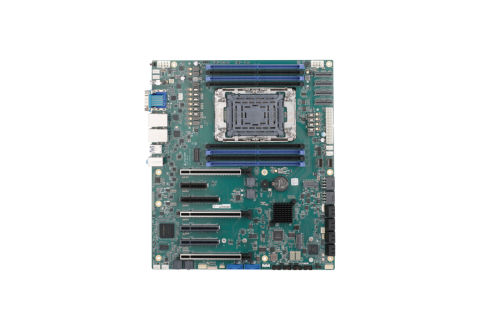

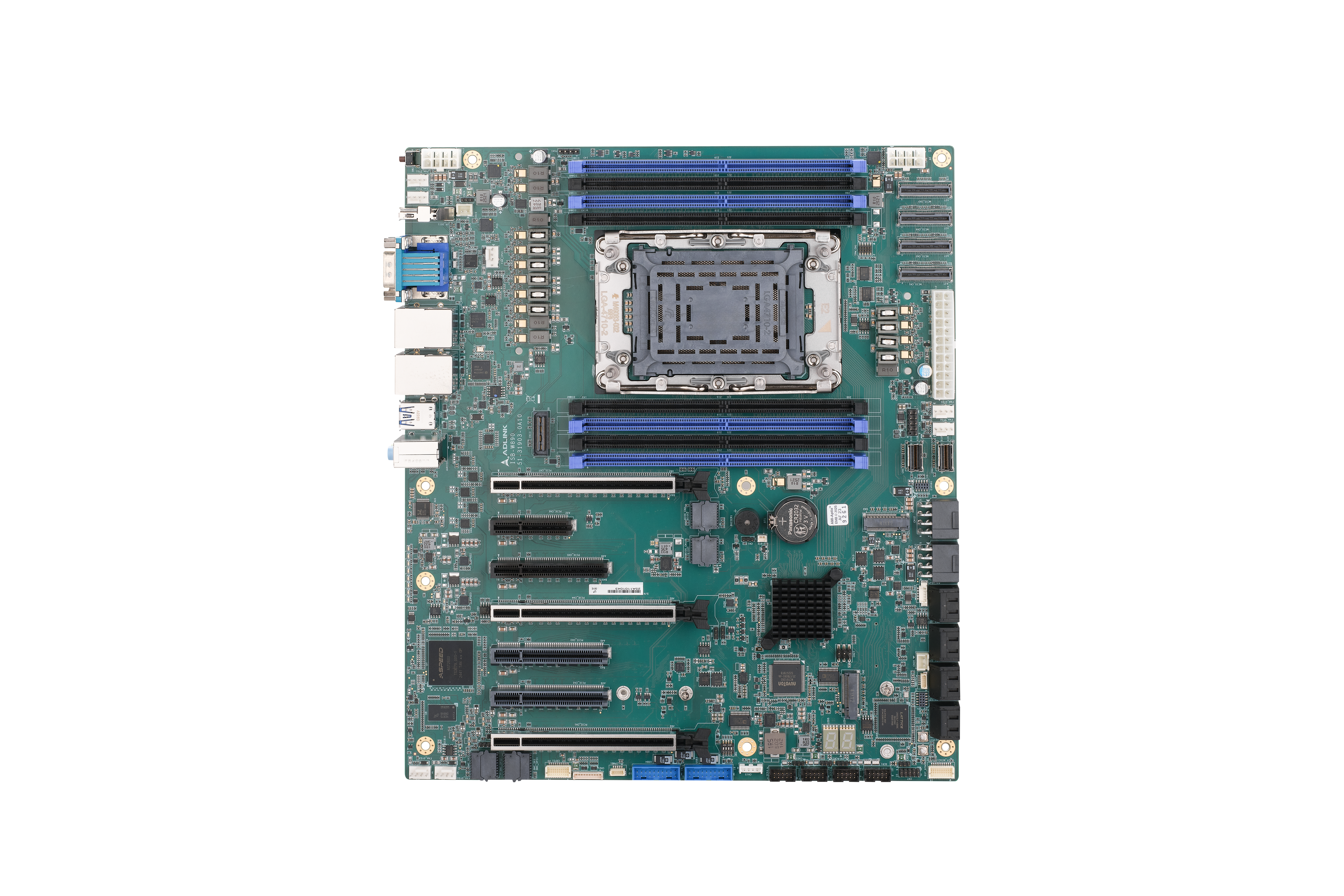

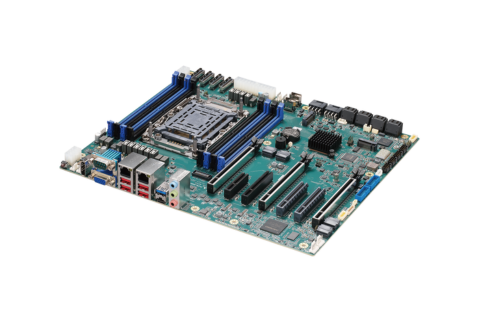

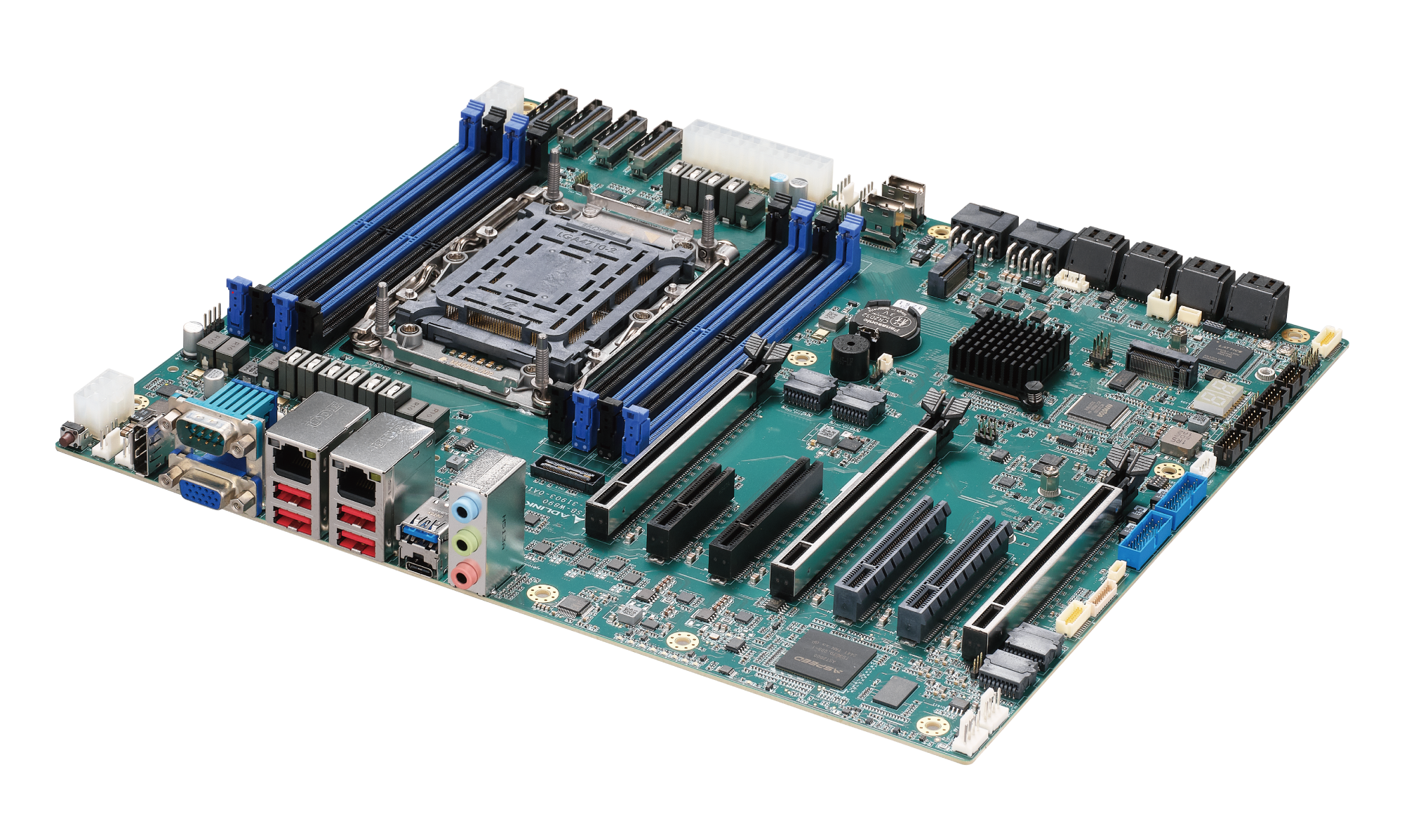

The ADLINK ISB-W890 is a high-performance CEB board powered by Intel® Xeon® 600 processors for Workstations. It features a robust architecture supporting up to 1TB of DDR5-6400 ECC memory and 7x PCIe slots (including 3x Gen5 x16) , providing a powerful foundation for multi-GPU AI inference and professional visualization tasks.
Key Value Propositions
- Elite Expansion：Offers 7x PCIe slots and 4x MCIO x8 connectors for maximum I/O flexibility.
- Versatile Storage：Integrates 2x M.2 NVMe, 2x SlimSAS, and 8x SATA III slots for high-speed data handling.
- Optimized Form Factor：Standard 12" x 10.5" CEB size ensures easy integration into space-efficient workstation chassis.
*PCIe lane configuration depends on the installed Intel Xeon CPU SKU.
| Processor Number |
Cores/ Threads |
Intel® Smart Cache LLC |
Base / Max Turbo Frequency |
PCIe Lanes |
Notes |
| Intel® Xeon® 698X |
86 / 172 |
336 |
2.0 / 4.6 |
128 |
Extreme high-end for massive virtualization or complex, multi-model workloads |
| Intel® Xeon® 696X |
64 / 128 |
336 |
2.4 / 4.6 |
128 |
High core density for data center-grade edge nodes |
| Intel® Xeon® 678X |
48 / 96 |
192 |
2.4 / 4.7 |
128 |
High-performance AI inference & heavy multitasking |
| Intel® Xeon® 656 |
20 / 40 |
72 |
2.9 / 4.6 |
128 |
Enough cores for automation |
| Intel® Xeon® 654 |
18 / 36 |
72 |
3.1 / 4.6 |
128 |
| Intel® Xeon® 636 |
12 / 24 |
48 |
3.5 / 4.5 |
80 |
Suitable for budget Edge Servers needing minimal high-end GPUs |
| Intel® Xeon® 634 |
12 / 24 |
48 |
2.7 / 4.4 |
80 |
*PCIe lane configuration depends on the installed Intel® Xeon® CPU SKU.
