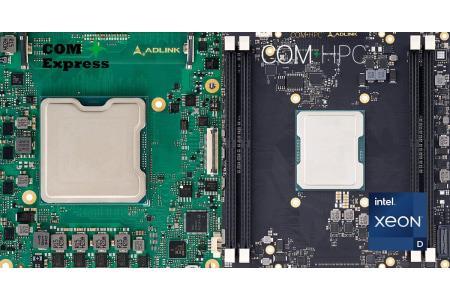

ADLINK presents Edge server-class COM-HPC Server Type and COM Express Type 7 Modules powered by the latest Intel® Xeon® D processors
ADLINK COM-HPC-sIDH is a COM-HPC server type D size module powered by Intel® Xeon® D-2700 HCC processor with up to 20 CPU cores, 30MB cache, 512GB DDR4 memory capacity, 8x 10G or 4x 25G Ethernet, and power consumption of 65 to 118 watts. On the other hand, ADLINK Express-ID7 is a COM Express Type 7 module based on Intel® Xeon® D-1700 LCC processor and delivers a power envelope of up to 67W TDP, offering up to 10 CPU cores, 128GB DDR4 memory capacity, and 4x 10G Ethernet.
Boasting Intel® Deep Learning Boost (VNNI) and Intel® AVX-512 for AI inference processing, ADLINK COMs with Intel® Ice Lake-D finely fulfill on-device machine learning and deep learning processes, transforming machine vision, natural language processing, and smart video analytics besting previous generations. In addition, these new COMs feature Intel® Time Coordinated Computing® (Intel® TCC), and provide Time Sensitive Networking (TSN) support –bringing precise CPU core control and timely synchronization over networked devices while ensuring low-latency, deterministic performance for driving hard-real-time workloads.
